*We supply complete solution for the carbonated beverage production line ,including Water treatment system / Carbonated beverage mixing system / Washing filling capping machine / Code sprayer / Pasteurizer tunnel / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system

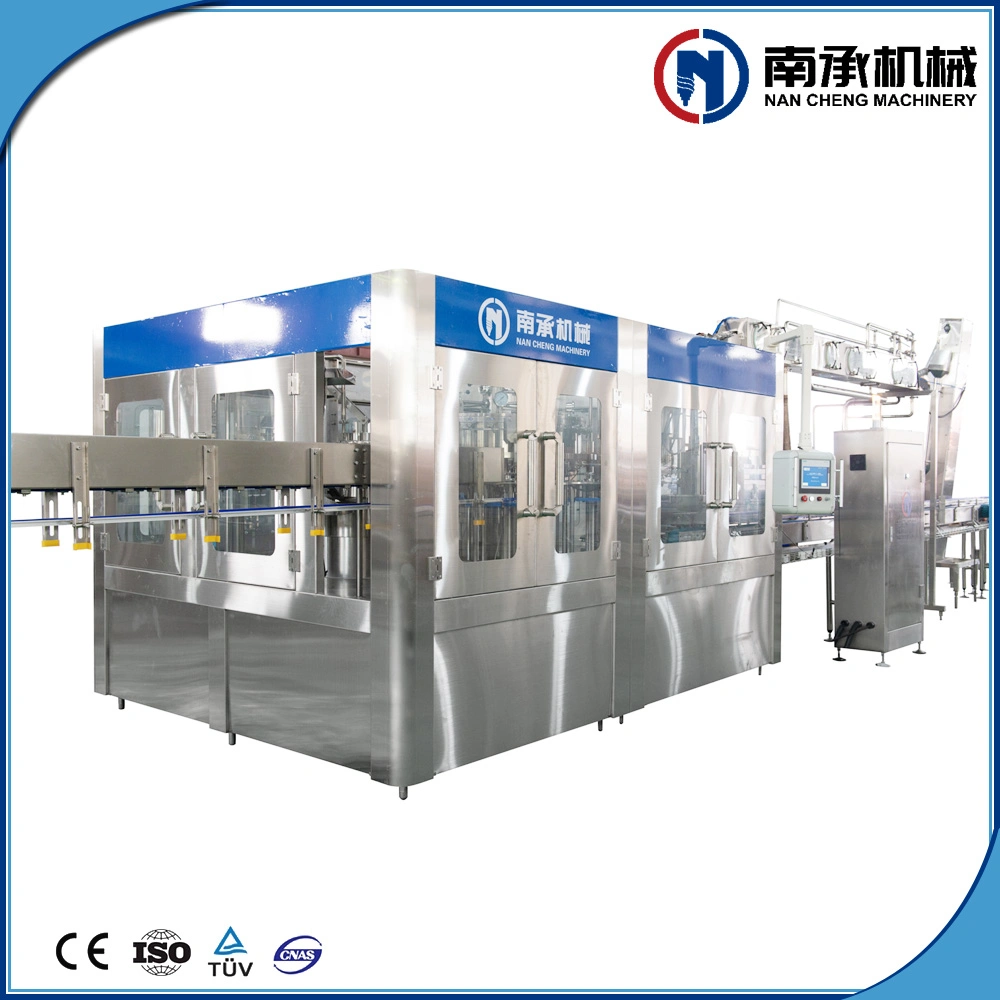

| Technical parameter : carbonated drink filling machine | |||||
| Model | DCGF12-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 |
| Capacity(for 500ml) | 2000-3000 | 3000-5000 | 5000-7000 | 8000-10000 | 12000-15000 |
| Suitable bottle shapes | PET circular | ||||
| Bottle diameter(mm) | Dia50-Dia115mm | ||||
| Bottle height (mm) | 160-320mm | ||||
| Filling type | Isobaric filling | ||||
| Filling pressure | <0.4 Mpa | ||||
| Rinsing water pressure | >0.06Mpa <0.2Mpa | ||||
| Application | carbonated drink filling machine | ||||
| Total power (KW) | 4.4kw | 5.2kw | 6.2kw | 7.5kw | 8.2kw |
| Overall dimensions | 2.5*1.9m | 2.8*1.9m | 3.2*2.2m | 3.4*2.5m | 4.8*2.3m |
| Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m |
| Weight(kg) | 3000kg | 4500kg | 6000kg | 8500kg | 10000kg |
DETAILS SHOWING
WATER TREATMENT SYSTEM
According to customer's water source analysis report and the final water standard required, we will suggest customer to choose the suitable water treatment plants.
Mixing system
carbonated beverage bottling plant Main Features
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
*High-speed large Isobaric filling valve, filling fast, filling accurate and no liquid lose.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
FIliing machine
Warming machine
