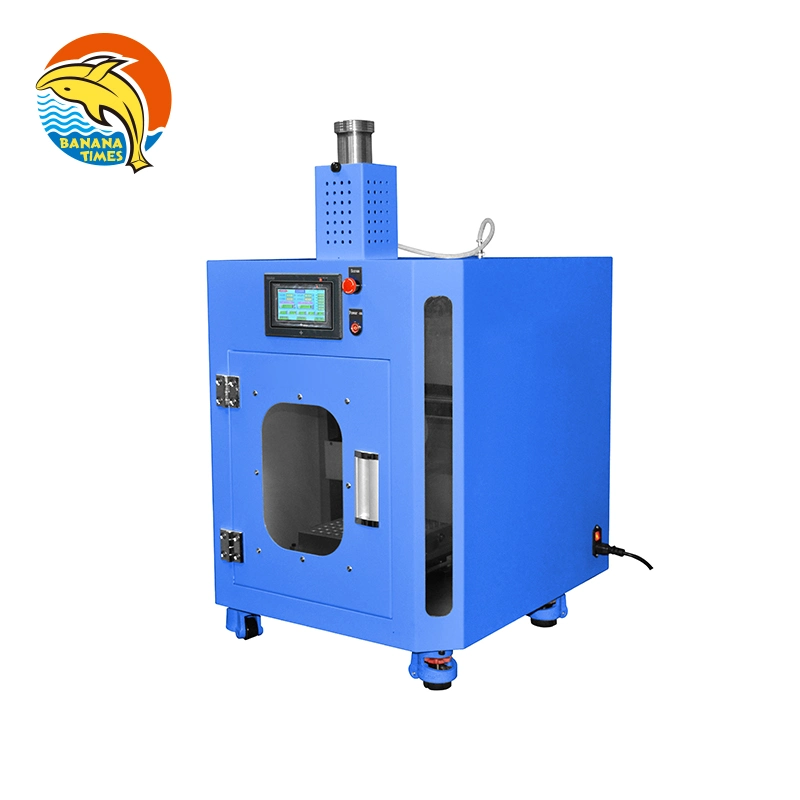

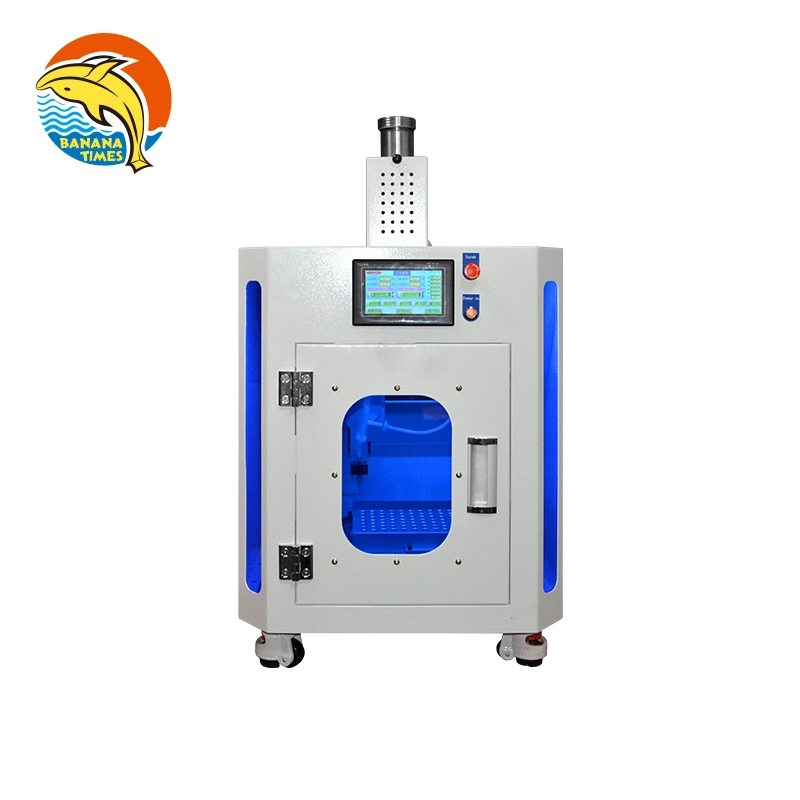

F4 Automatic CBD Oil Vapor Cartrige Filling Machine
Features of F1 Oil Filling Machine:
1. Two heating systems. Fit for all thin liquid
2. don't customized the tray and air compressor
3. Fully automatic, Easy to operate
4. Working life: 10 years
5. Low Price. $2400/pc--- Factory diectly selling.
Detail information:
1. Filling precise: +/-0.02ml
2. Handle thick oil: two heating systems (on needle, reservoir)
3. Reservoir options: 300ml, 500ml, 1L, 4L or customized size to meet your requirements
4. Material for oil reservoir: Stainless steel or Carbon steel (Food grade standard)
5. Warranty: 1 year
Model | F1 Filling machine |
Speed | X & Y/Z (mm/sec): 0.1~800/ 500 |
Positional Accuracy | 0.05mm/ Axis |
Repeated position accuracy | ±0.03mm/ Axis |
Repeated filling accuracy | ±0.02ml |
Program display | Teach pendant LCD |
Programming method | Teach pendant |
Power supply | AC 100-220V, 300W |
Filling machine dimension | 550mm * 490mm * 635mm |
Machine weight | Approx. 68KG |
Working environment | Working relative humidity: 20-80%RH no condensation; Working temperature: 0-40ºC |
Load Y/Z AIXS | 6 Kg/ 2Kg |
Program capacity | Min 100 group, 4000 points/group |
Data storage type | CF Card |
Motor system | Micro stepping motor |
Control method | PTP & CP |
Interpolation function | 3 axes(suit for 3D requirement) |
The workshops occupy an area of more than 1,270 square meters. Banana Times has obtained CE, RoHS and FCC certificates for our products.
1) Give replacements if there is quality problem of the part;
2) valuate the customs risk and choose safest shipping company during different period;
3) Follow status up time by time until the goods arrive client's hand.
1. Customer: Can i do the logo with my brand?
Bananatimes: Sure, we could custom the logo on the products and packaging. The moq is only 1000pcs.
2. Customer: How About the MOQ?
Bananatimes: Most product's MOQ are 1 pcs.
3. Customer: Can it fill the 30ml bottle?
Bananatimes: Sure, the max filling capacity is 50ml.
4. Customer: How to order the products?
Bananatimes:Step1. Tell us what model and quality you need, Get Latest Quote
Step2. Make Proforma Invoice
Step3. Confirmed PI to us, and arrange the payment.
Step4. Once we get payment, we will make production samples to confirmed
Step5. After confirmed, start to produce.
