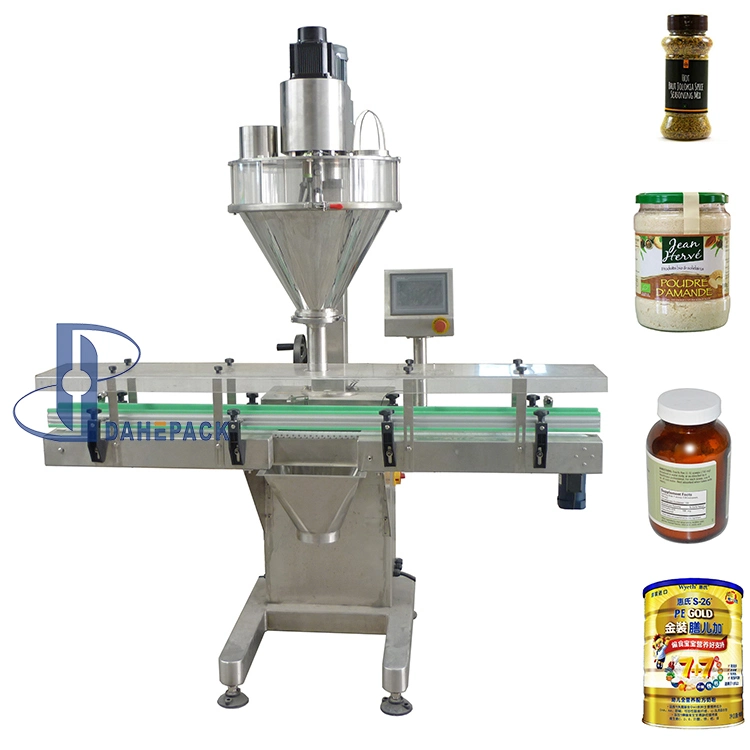

Factory Auger filler spices powder filling packing machine
Introduction
1# This is a automatic auger type can/bottles metering filling machine ,designed for metering and filliing various dry powder into different rigid containers: Can/Bottle/Jar etc.
2# The Machine provides powder metering and filling functions.
3# Bottles and cans are introduced by conveyor belt combined with gating system.
4# There is a photo eye sensor for bottles detection so as to achieve bottle-fill ,no-bottle no-fill.
5#Automatic bottle postioning-filling-releasing,optional vibration and elevation.
6# Featured with compact design,stable performance,easy to operate and good cost performance!
Specification
| Model | DH-Q1-D100 | DH-Q1-D160 |
| Control System | PLC and Full color HMI | |
| Hopper Volume | 25L | 50L |
| Filling Weight Range | 1-500g(With different size auger tools) | 10-5000g(With different size auger tools) |
| Filling Accuracy | <100g <+/-2% 100-500g <+/-1% >500g <+/-0.5% | |
| Filling Capacity | 10-40Units/Min(Depends on fill weight, container size and product density) | |
| Contact Parts | Fully Stainless Steel Construction and SUS304 for product contact parts | |
| Power Supply | 3P 208-415V 50/60HZ | |
| Total Power | 1.2KW | 1.6KW |
| Total Weight | 170KGS | 300KGS |
| Air Consumption | 4-6Bars | |
| Overall Size | 1500*760*1850MM | 2000*970*2030MM |
| Optional: Unscrambling Table, Collecting Table,Screw Conveyor, Capping Machine, Induction Sealer, Labelling Machine etc. | ||
