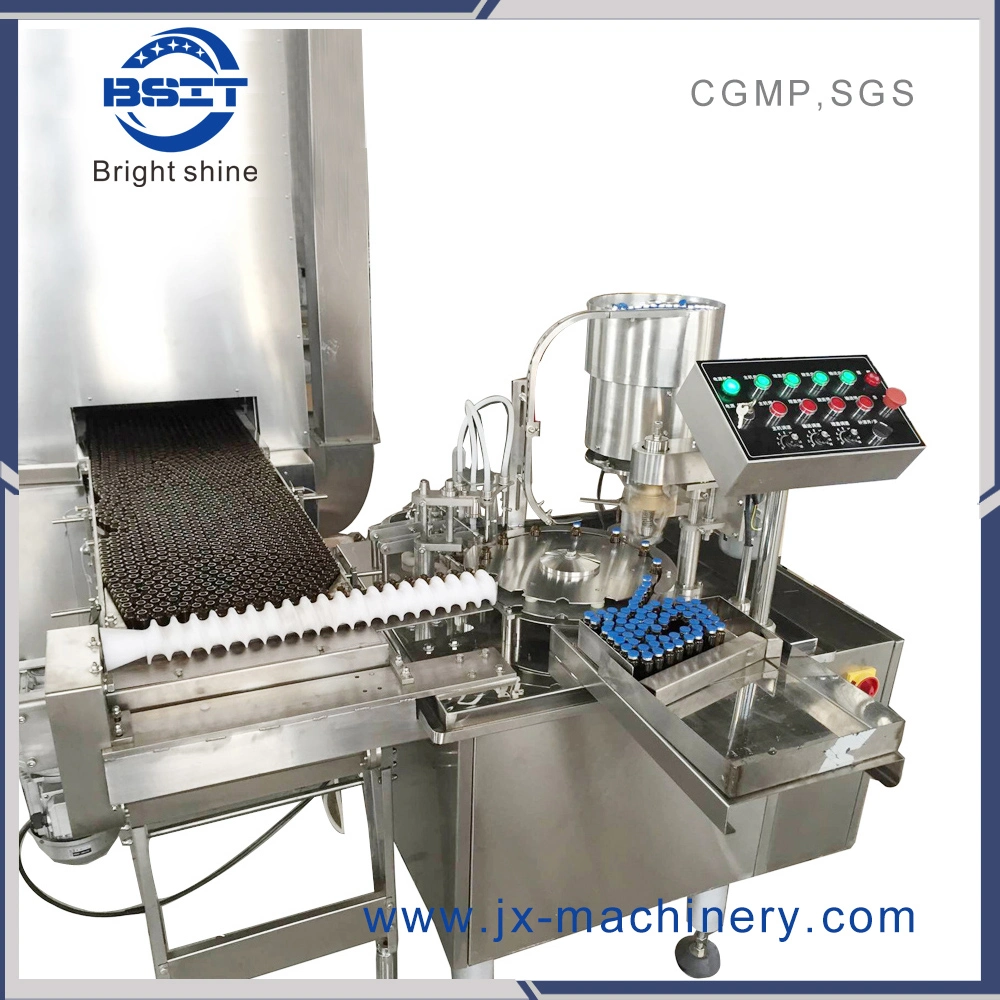

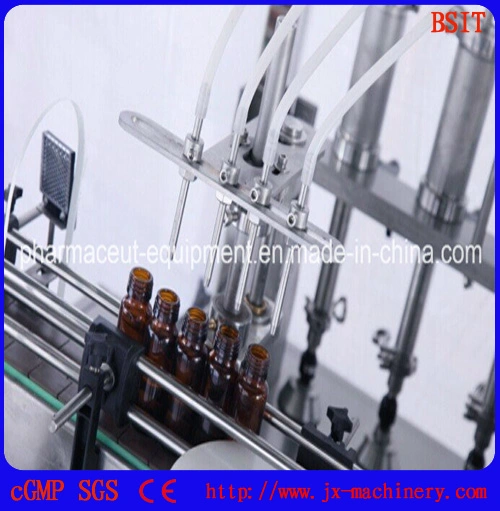

YG50/1000-6 Automatic Volumetric filling machine for the application of light liquid filling into plastic or glass bottles. The machine is composed by a conveyor, SS316L volumetric piston pump (max. 12 heads), top-bottom filling nozzles, liquid buffer tank and bottle indexing system. The bottle loading/unloading through loading/unloading turntable (alternative Ø 620mm or Ø 900mm), or directly from an production line.
Technical Features:
Kind of bottleVarious kinds of plastic/glass bottle
Bottle size*Min. Ø 20mm Max. Ø 80mm
Filing nozzles6 heads
Speed 40~60bpm
Alternative Filling volume*15~60ml, 30~125ml, 50~250ml, 200~500ml
Filling accuracy± 1%
Power* 220V 50/60Hz 1.2kw
Compress air require30L/min, 4~6bar
Machine size mmLength 2500, width 1000, height 1800
Machine weight: 800kgs
* Other sizes on request
Technical Features:
Kind of bottleVarious kinds of plastic/glass bottle
Bottle size*Min. Ø 20mm Max. Ø 80mm
Filing nozzles6 heads
Speed 40~60bpm
Alternative Filling volume*15~60ml, 30~125ml, 50~250ml, 200~500ml
Filling accuracy± 1%
Power* 220V 50/60Hz 1.2kw
Compress air require30L/min, 4~6bar
Machine size mmLength 2500, width 1000, height 1800
Machine weight: 800kgs
* Other sizes on request
| No. | Item | Model | Origin | Qty. |
| 1 | C-driver motor | NCV18 200W | TaiwanYK | 1pc |
| 2 | SMPS | 24V*15A | TaiwanMW | 1pc |
| 3 | relay | Lc1-D0910 M/B7n | French Schneider | 5pcs |
| 4 | Button | Z/X B2 | French Schneider | 5pcs |
| 5 | Air switch | OSMC32NC6 | French Schneider | 5pcs |
| 6 | Photo sensor | PZ-G62N | JapanKeyence | 4pcs |
| 7 | PLC | DVP-32ES | Taiwan Delta | 1pc |
| 8 | Inverter | VFD-M | Taiwan Delta | 1pc |
| 9 | Touch Screen | DVP | Taiwan Delta | 1pc |
| 10 | Main Motor | YVF2-802-4 | China Wan'nan | 1unit |
| 11 | Motor reducer | I=1:30 | HZ Reducer | 1unit |
| 12 | pneumatic elements | TaiwanAIRTAC | 10pcs |
